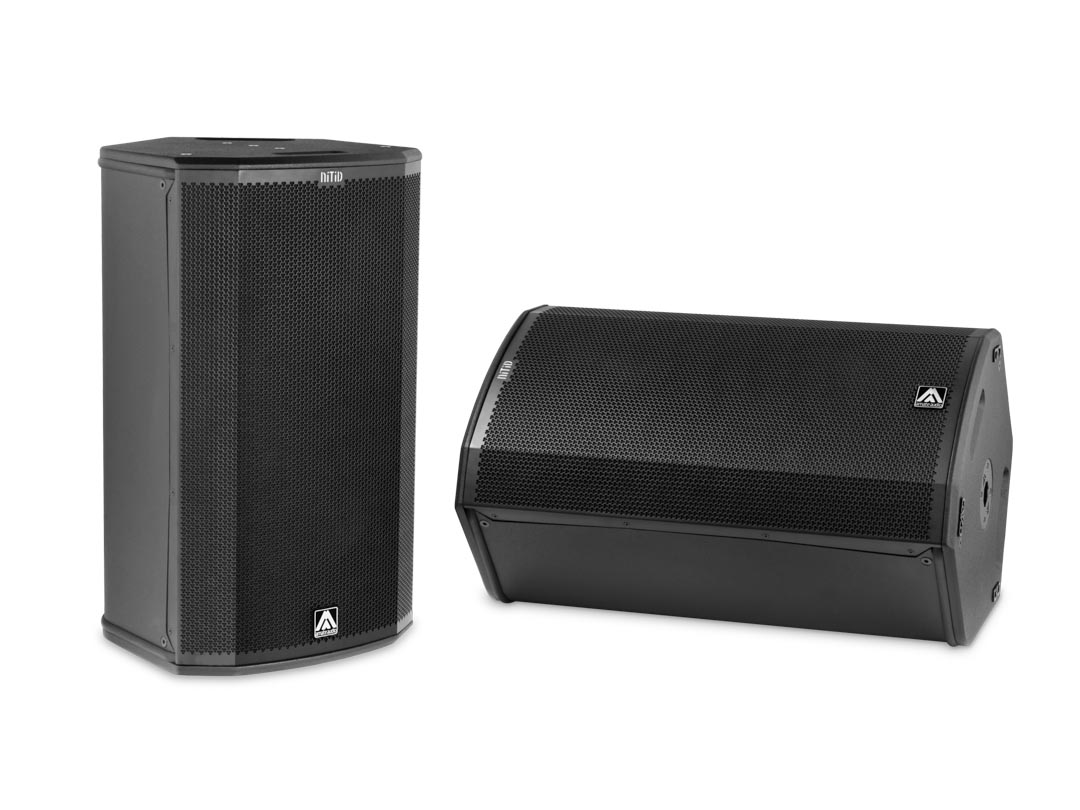

Amate audio Nitid S15LT
Novo kućište S15LT je visokosnažni dvosistemski zvučnik koji kombinira pojačalo klase D treće generacije od 2500 W za napajanje našeg najnovijeg 4-inčnog neodimskog woofera sa zvučnom zavojnicom. Poboljšani SPL (132 dB) zatvoren u maloj težini i kompaktnom formatu.Upravljanje DSP sustavom najnovije generacije tvrtke Amate Audio integrirano je s pojačalom klase D treće generacije. Upravljanje i praćenje DSP sustava putem zaslona osjetljivog na dodir u boji uključuje pristup moćnim unaprijed postavljenim postavkama.
| Amplifier program power | 2000 W (LF) + 500 W (HF) Class D Bi-amplified |
| Input sensitivity | 8 dBu – 1.94 V |
| Input impedance | 50 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2.9 A (Heavy duty musical program) |
| SPL (1m) | 132 dB continuous, 135 dB peak |
| Built-in DSP | 64-bit processing unit. Includes factory presets. |
| Presets | FLAT / SPEECH / MONITOR / HPF90 |
| AD/DA converters | 24 bit – 48 kHz |
| Standby mode consumption | 3.7 W @230VAC |
| Adjustable delay line | 294 ms / 100 m |
| Frequency response (-10 dB) | 48 Hz – 18 kHz |
| LF – MF | 15″ neodymium woofer (4″ voice coil) |
| HF | 1.7″HT polymer diaphragm neodymium magnet driver |
| Directivity (-6dB) | 50º to 100º (H) x 55º (V) |
| Dimensions (HxWxD) | 733 x 423 x 460 mm |
| Weight | 26.8 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating and protective rubber profiles |
| Grille | 1.5mm powder coated steel with black acoustic mesh |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link |
| Brand | Amate Audio |
|---|
